Description

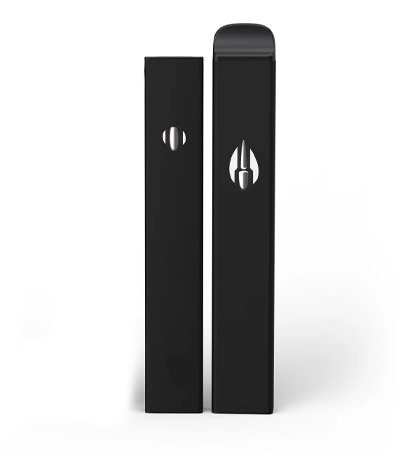

LVLv1 8492M Close-Top Disposable is a top-fill, auto-draw activated disposable vape designed for reliable performance and easy filling. The visible oil chamber allows users to check remaining oil at a glance, while the internal structure uses food-grade and high-quality materials for safety and consistency.
Key Features
- Top-fill disposable vape device
- 1.0 ml oil capacity
- Visible oil chamber to check remaining oil
- Food-grade stainless steel center tube
- Clog-resistant internal design
- Auto-draw activation (no button)
- LED indicator for charging and usage
Technical Specifications
- Version / Size: 1.0 ml
- Resistance: 1.6 Ω
- Fluid Inlet Diameter: φ1.3 mm × 2
- Fluid Housing: PCTG
- Atomizer Shell & Airway Tube: Stainless steel
- Atomizer Base: Silicon (55°)
- Heating Element: FeCrAl
- Wick: Ceramic
- Atomizer Retaining Wrap: Cotton
- Seals: Silicon (55°)
Battery & Electrical
- Battery Capacity: 280 mAh
- Output Voltage: 3.7 V
- Max Current Output: 3 A
- Charging Current: 0.5 A
User Interface & LED Behaviour
- Auto-draw activated (inhale to vape)
- LED turns on while charging
- LED flashes when the cell is fully charged and when unplugged
- LED flashes 10 times as a notification (e.g. low battery / protection)
Filling Instructions (For OEM / Filling Partners)
- Keep the disposable vertically oriented with the USB charging port pointing down.
- Fill using a blunt-tipped or sharp-tipped needle through the fill hole between the airway and outer wall.
- Do not overfill and avoid letting fluid enter the central airway tube.
- Immediately insert and press the mouthpiece into place after filling (within 2 minutes) and do not twist or use a hammer.
Note: Mouthpiece type is jig-press (can also be pressed by hand). Once fully seated, the mouthpiece cannot be removed without damage.
