Description

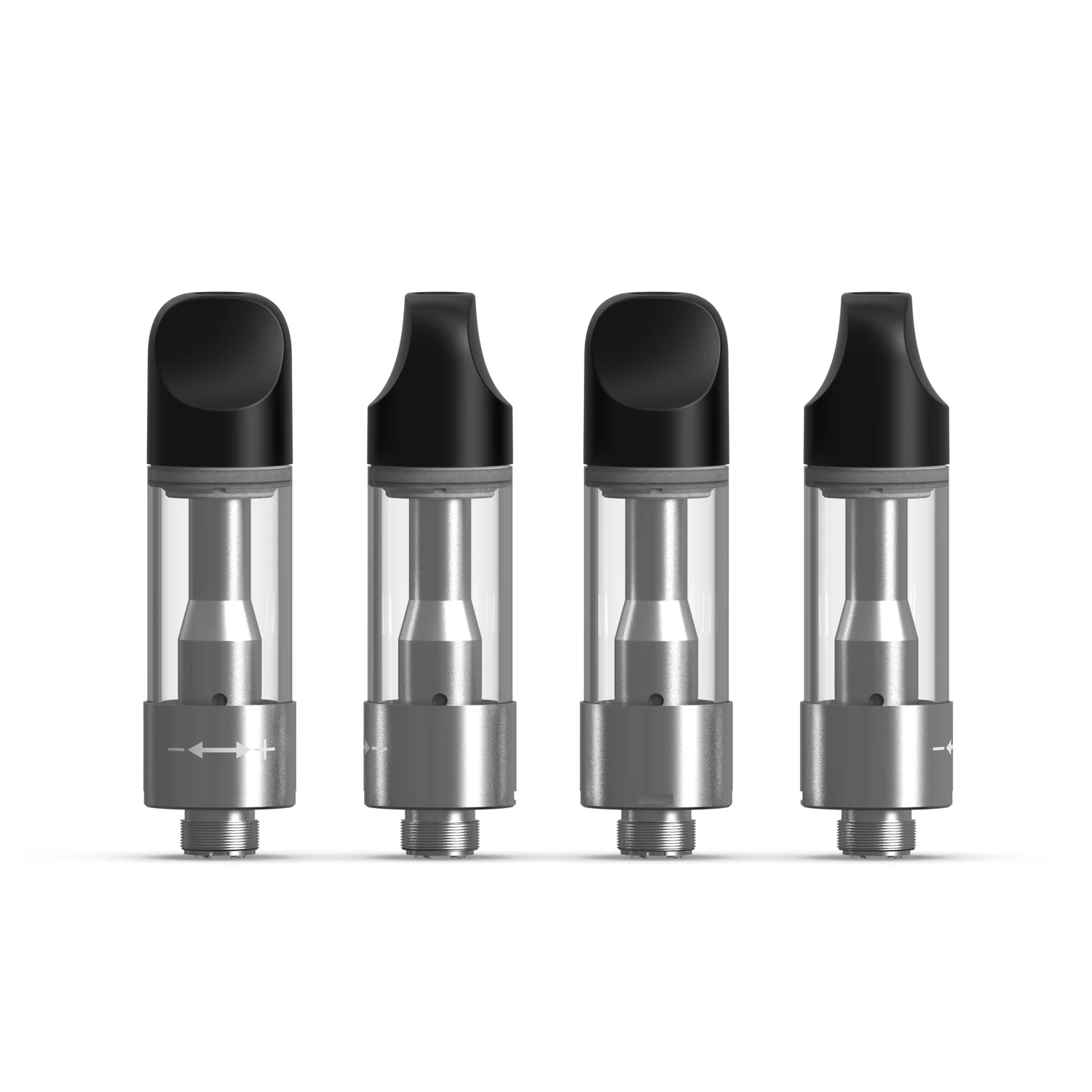

X10P Quick-Press (Model 9767) is a 13.5 mm top-fill vaporizer cartridge engineered for premium performance using patented dual-coil ceramic technology. Designed with a plastic viewing window, quick-press capping, and food-grade stainless steel center tube, this cartridge offers clean flavor, strong vapor output, and compatibility with all viscosity ranges.
Key Features
- Top-fill vaporizer cartridge
- Patented dual ceramic coil system with two airpaths for superior vapor
- Quick-press mouthpiece (press-by-hand design)
- 1.0 ml oil capacity
- Compatible with all viscosity ranges
- Plastic window and plastic mouthpiece for lightweight and economical design
- Food-grade stainless steel center tube
- PCTG fluid housing
Technical Specifications
- Version / Size: 1.0 ml
- Resistance: 1.0 Ω
- Fluid Inlet Diameter: φ1.3 mm × 4
- Housing Material: Plastic / PCTG
- Atomizer Shell & Airway Tube: Stainless steel
- Center Tube: Food-grade stainless steel
- Mouthpiece Type: Quick-press, hand-press installation
- Wick: Ceramic
- Heating Element: FeCrAl
- Seals: Silicon (70°)
- Atomizer Base: Brass
- Retaining Wrap: Cotton
Filling Instructions
The diagram on page 2 clearly shows the fill location between the airway and inner tube. Follow these steps:
- Insert a blunt-tipped or sharp-tipped needle into the space between the airway and the inner wall of the cartridge tube.
- With the cartridge held upright (510 thread pointing down), fill using the needle. Do not overfill and avoid getting fluid into the center airway.
- Immediately after filling, press the mouthpiece into place until fully seated. Do not use a hammer or mallet.
Caution
- Do not allow fluid to enter the center airway tube.
- Failure to install the mouthpiece within 2 minutes after filling may cause leakage.
- Incorrect filling technique may result in poor performance or leaks (as shown in the page 2 diagram).
